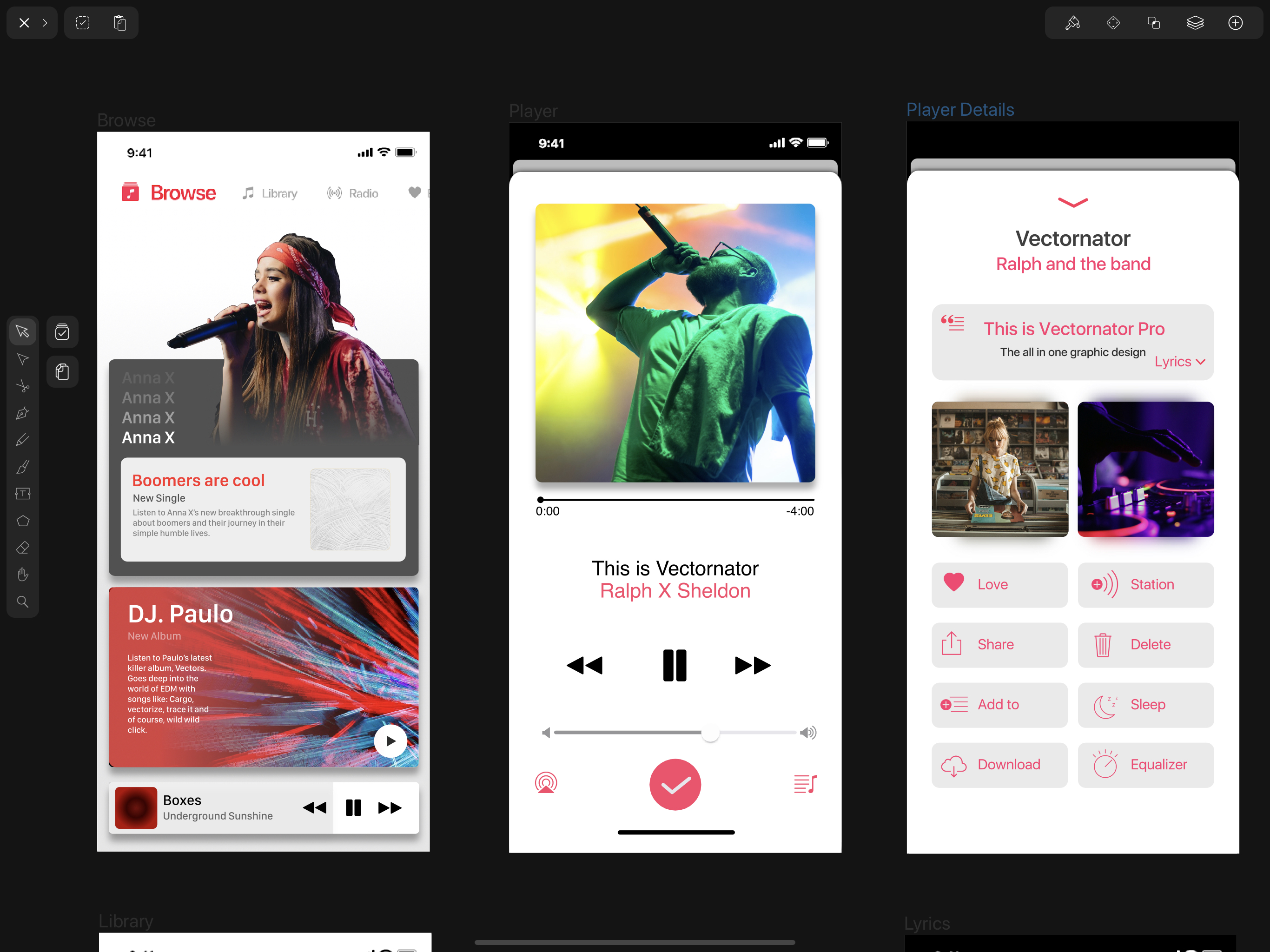

Artboards allow you to create and view separate frames or pages of your design without needing to switch documents.
By using Artboards, you can create separate frames or pages of your design simultaneously. This is useful for a variety of projects, including web design. In Vectornator, Artboards behave similar to a layer, with the main difference being that they are represented on the canvas as fixed frames.
Since our 4.8.0 update, Artboards display thumbnails for faster recognition and localization.
And with our 4.11.3 update, you can place objects or elements outside the Artboard. When an Artboard is exported in the SVG format, the objects outside the Artboard will be included within the exported document. If you export the document in the PNG or the JPG format, your objects’ areas outside the Artboard will be clipped.
Disable Artboard Clipping
You can set the clipping behavior of your Artboard regarding objects that overlap outside the Artboard borders. You can choose between two clipping behaviors:
1. Disable Clipping for selected Artboards
Objects or parts of objects outside the borders of your selected Artboard will not be clipped and will be visible with reduced opacity.
2. Clip all
All objects or parts of objects outside Artboards will be automatically clipped.
You can find the settings in the Settings Menu on the top right of the Action Bar. Select Canvas, and the clipping options can be accessed under Clip Artboards.
Disclaimer: The document interface will vary if you don't have the iPadOS 16 update or later versions installed.

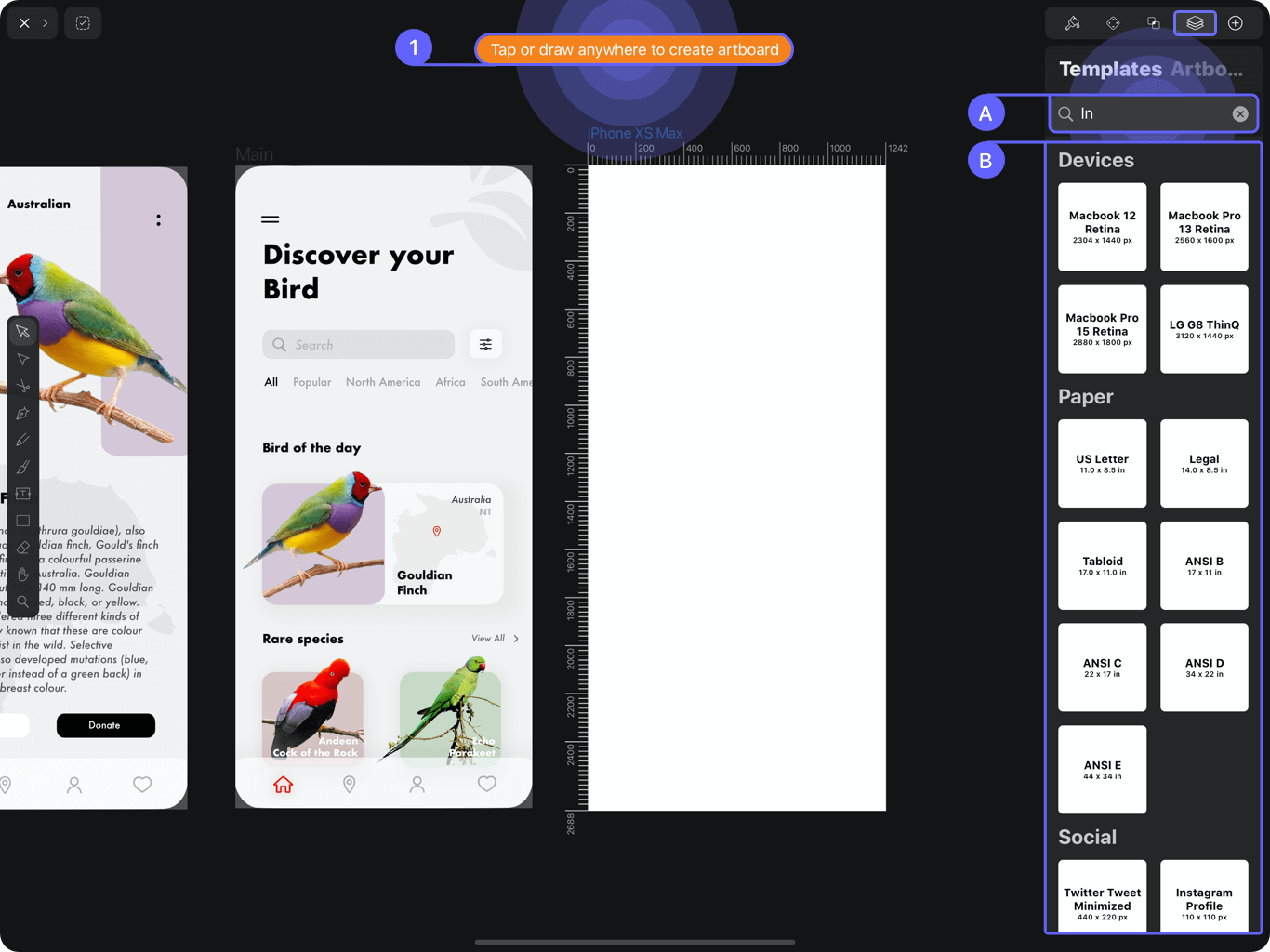

How to Add a New Artboard

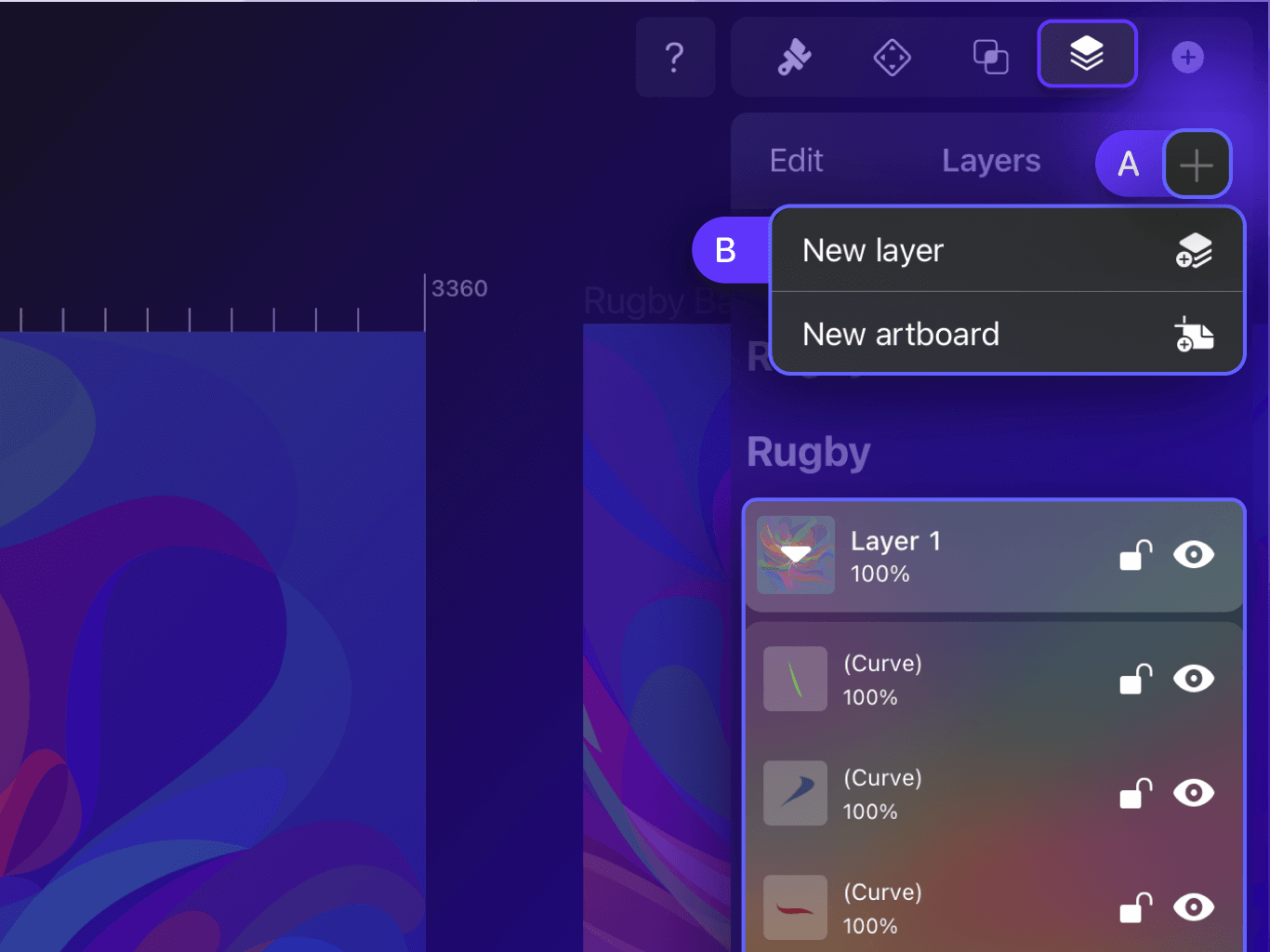

In Vectornator, there are three different ways to add a new Artboard to your document. To activate the New Artboard Mode, you can tap the + button in the top right corner of the Layers Tab and then select New Artboard ~ic-add-artboard~~ic-add-artboard~.

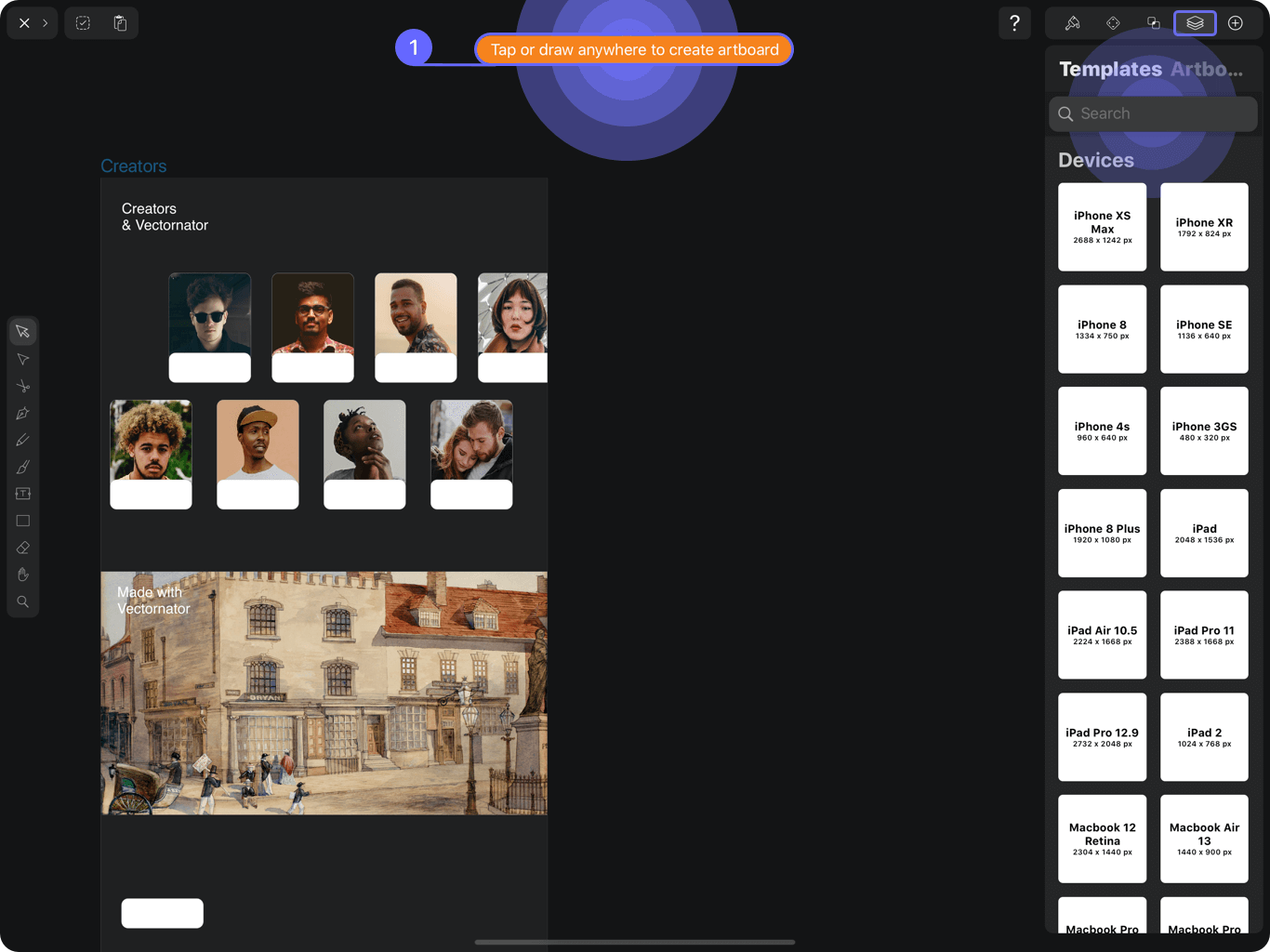

As soon as you tap the button, a suggestion box will appear at the top center of the Canvas, which reads: “Tap or draw anywhere to create an Artboard.”
How to Add a New Artboard by Tapping
Once you have tapped the New Artboard ~ic-add-artboard~~ic-add-artboard~ button, you can tap anywhere on the canvas. This will create a new Artboard with the same dimensions as the one you’ve previously created.
How to Add a New Artboard by Drawing
With the Artboard Panel activated, draw a new Artboard by holding & dragging your finger/pencil/mouse anywhere on the canvas.
How to Add a New Artboard by Using a Template
When in New Artboard Mode, you can access the Artboard Panel. Here you have access to the Document Templates List .
To create a new Artboard using a standard size, tap one of the template icons. By scrolling through this section, you will find different template formats divided into the following categories: Paper formats ~ic-paper~~ic-paper~, Devices ~ic-devices~~ic-devices~, Resolutions ~ic-resolutions~~ic-resolutions~, Social Media ~ic-social~~ic-social~, Icons ~ic-icons~~ic-icons~, and Custom~ic-custom-doc~~ic-custom-doc~.
In the Custom category, you can find all the Document Templates you have created inside the Document Picker. Alternatively, you can create a Custom Template by tapping the button at the bottom of this window.
Visit this Learning Hub section if you want to learn how to create a new Custom Document Template →
At the bottom of the Document Templates List, you can choose the format of your Artboard by tapping the Portrait icon or Landscape icon. At the top of this tab, you can find the Search bar ~ic-zoom~~ic-zoom~ that helps you navigate and find your template.

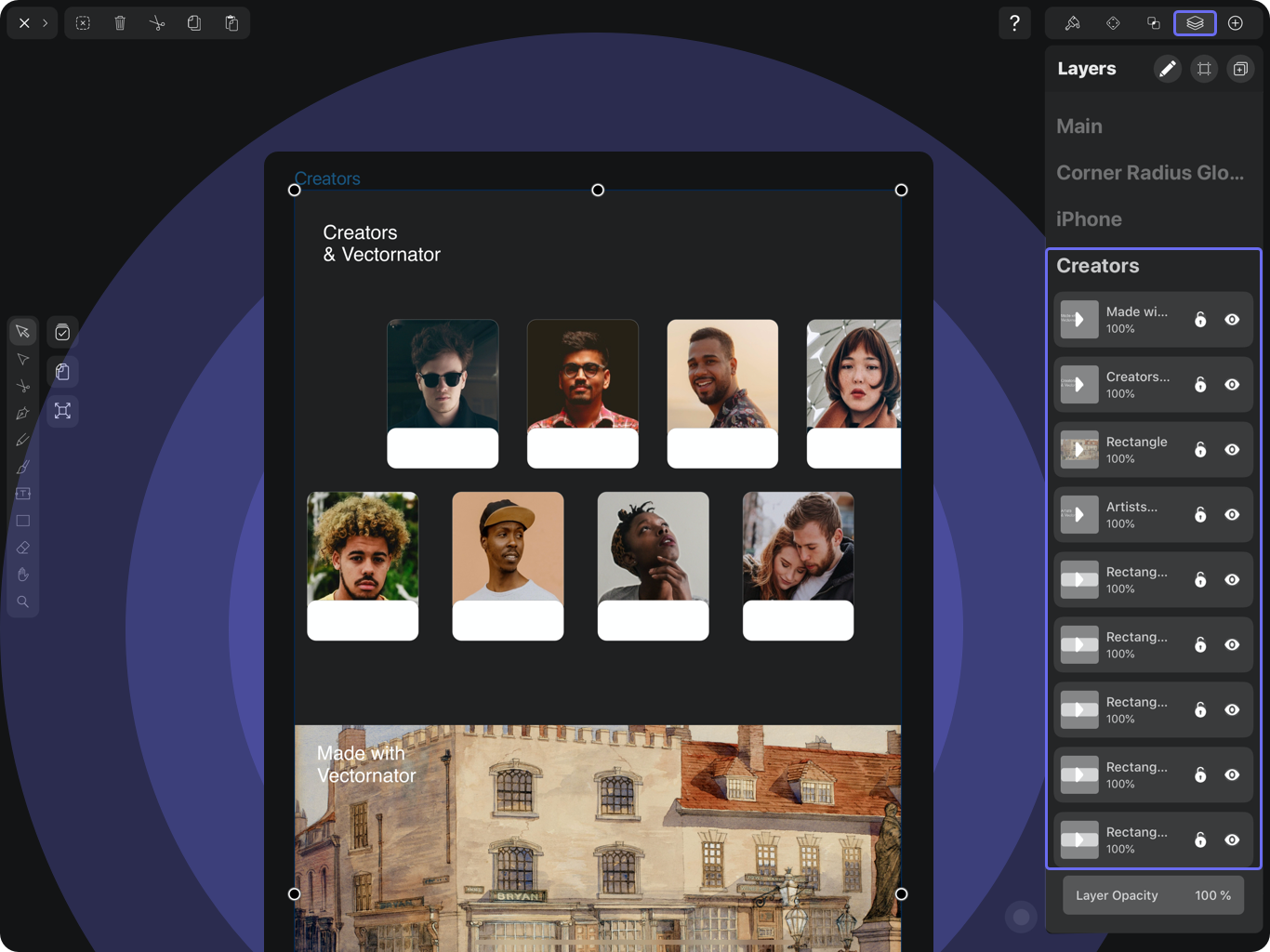

How to Select an Artboard
You can select an Artboard by either tapping on its borders or title. Alternatively, you can open the Layers Tab and tap on an Artboard’s name. The selected Artboard will be displayed immediately.

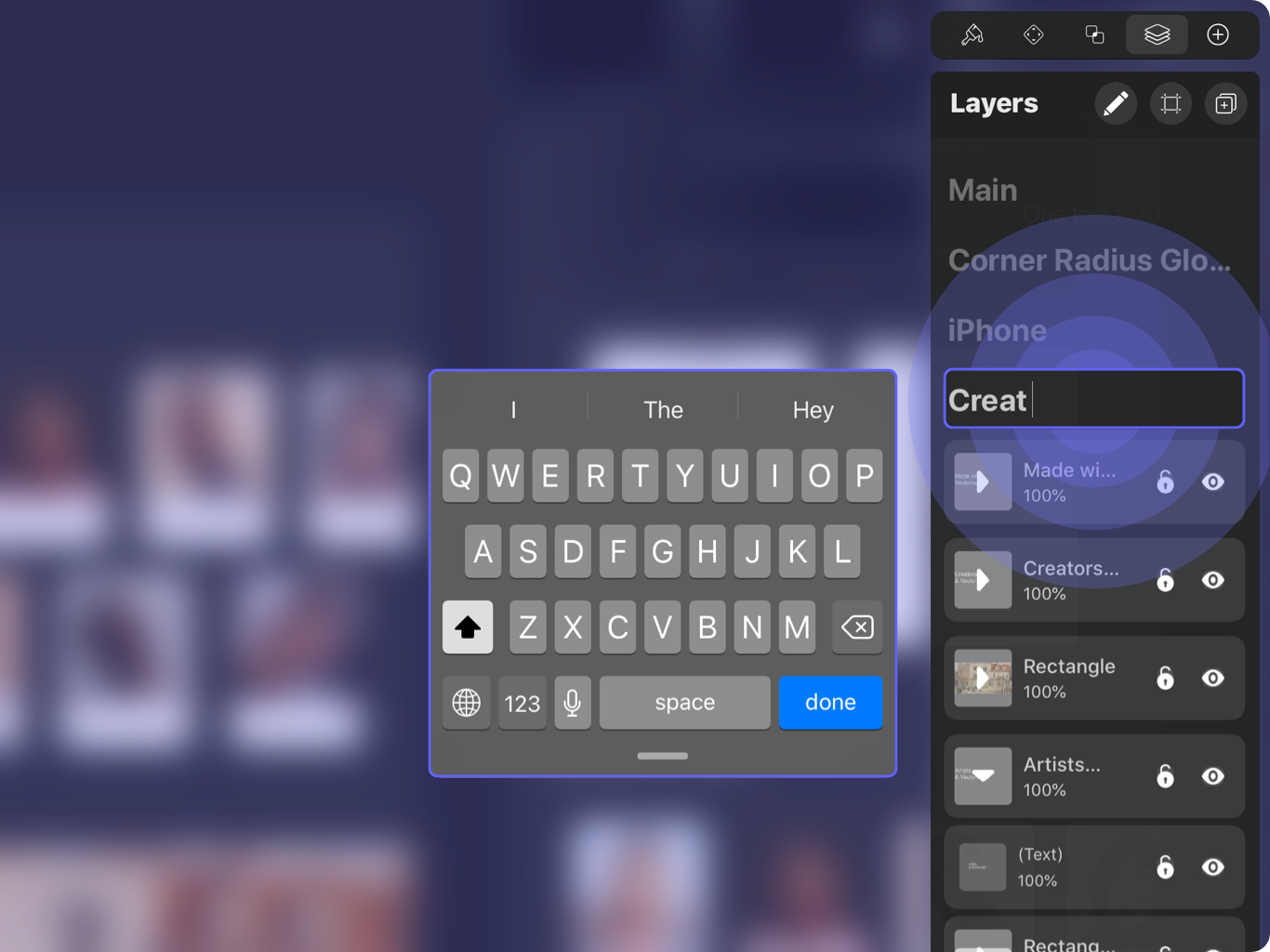

How to Rename an Artboard
You can rename any Artboard in the same way you rename layers. Navigate to the Layers Tab and tap on the Artboard’s name to type a new name by using the keypad, then tap Done to save your changes.

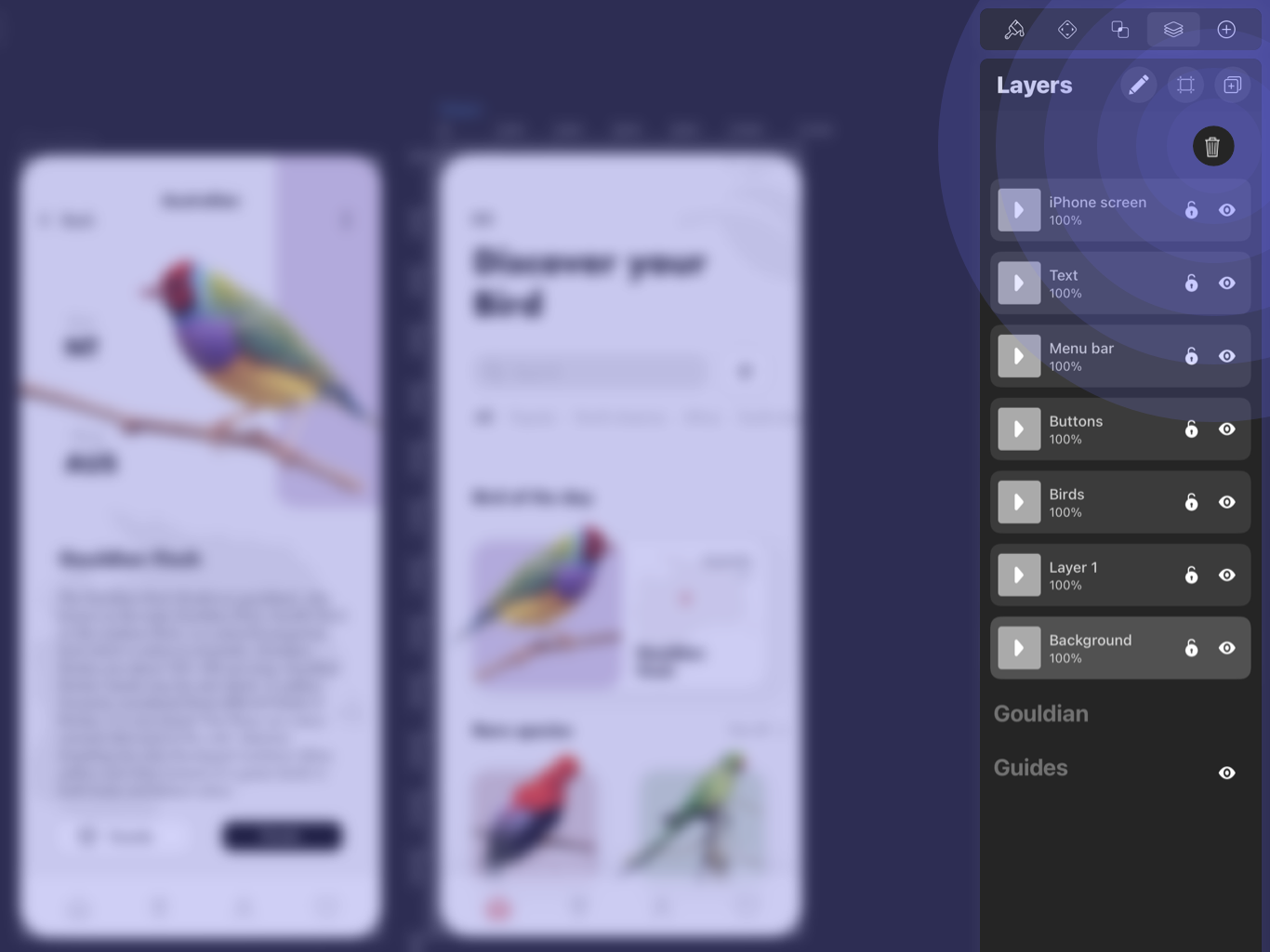

How to Delete an Artboard
Inside the Layers Tab, swipe left on the Artboard title or name and tap the Delete button. When you select the Artboard, a bin icon appears at the bottom. Tap the bin button to delete it.

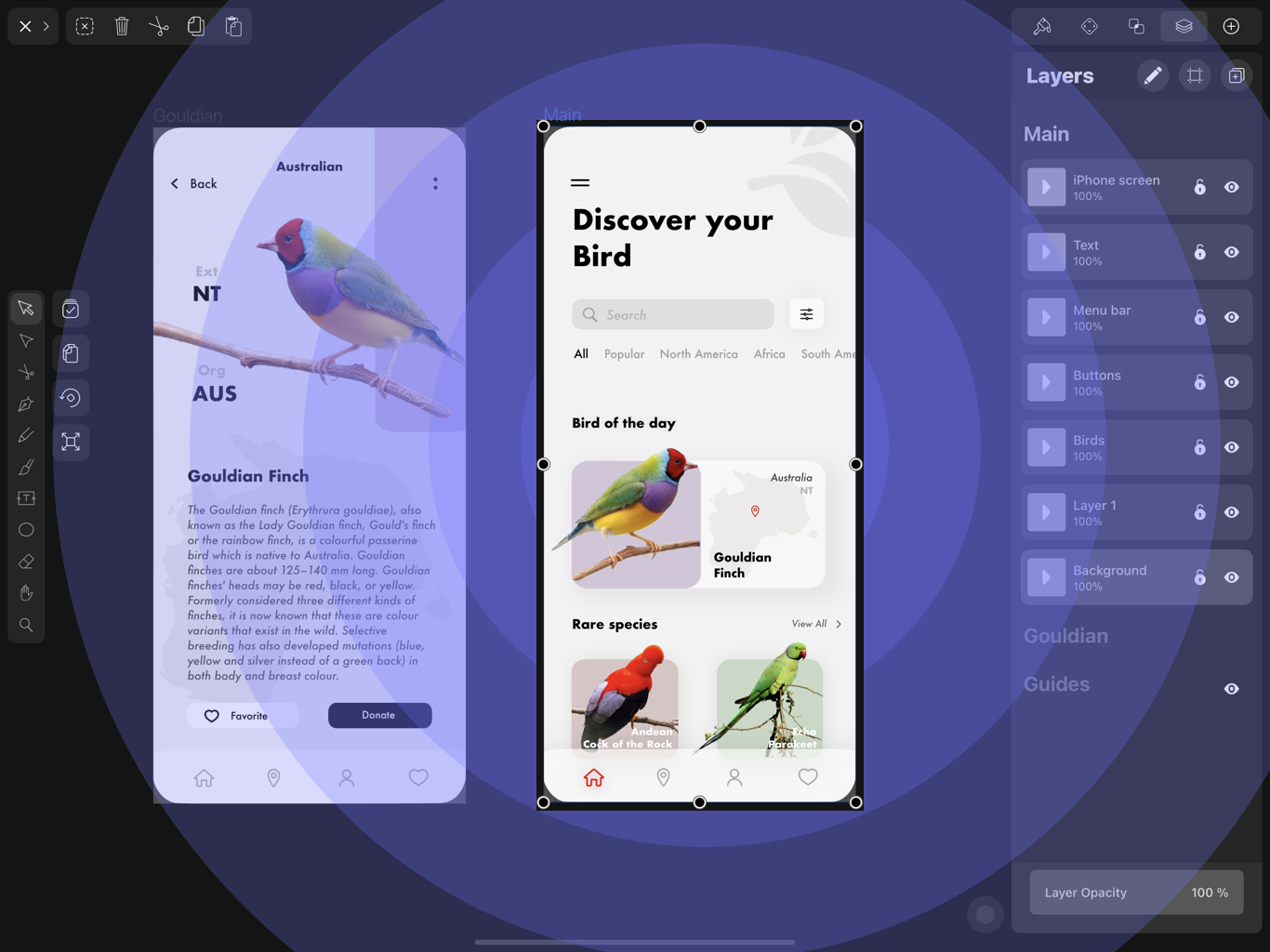

How to Move an Artboard
To move an Artboard, and all the layers it contains, tap on the Artboard title on the canvas, and drag and drop it to where you would like to position it.

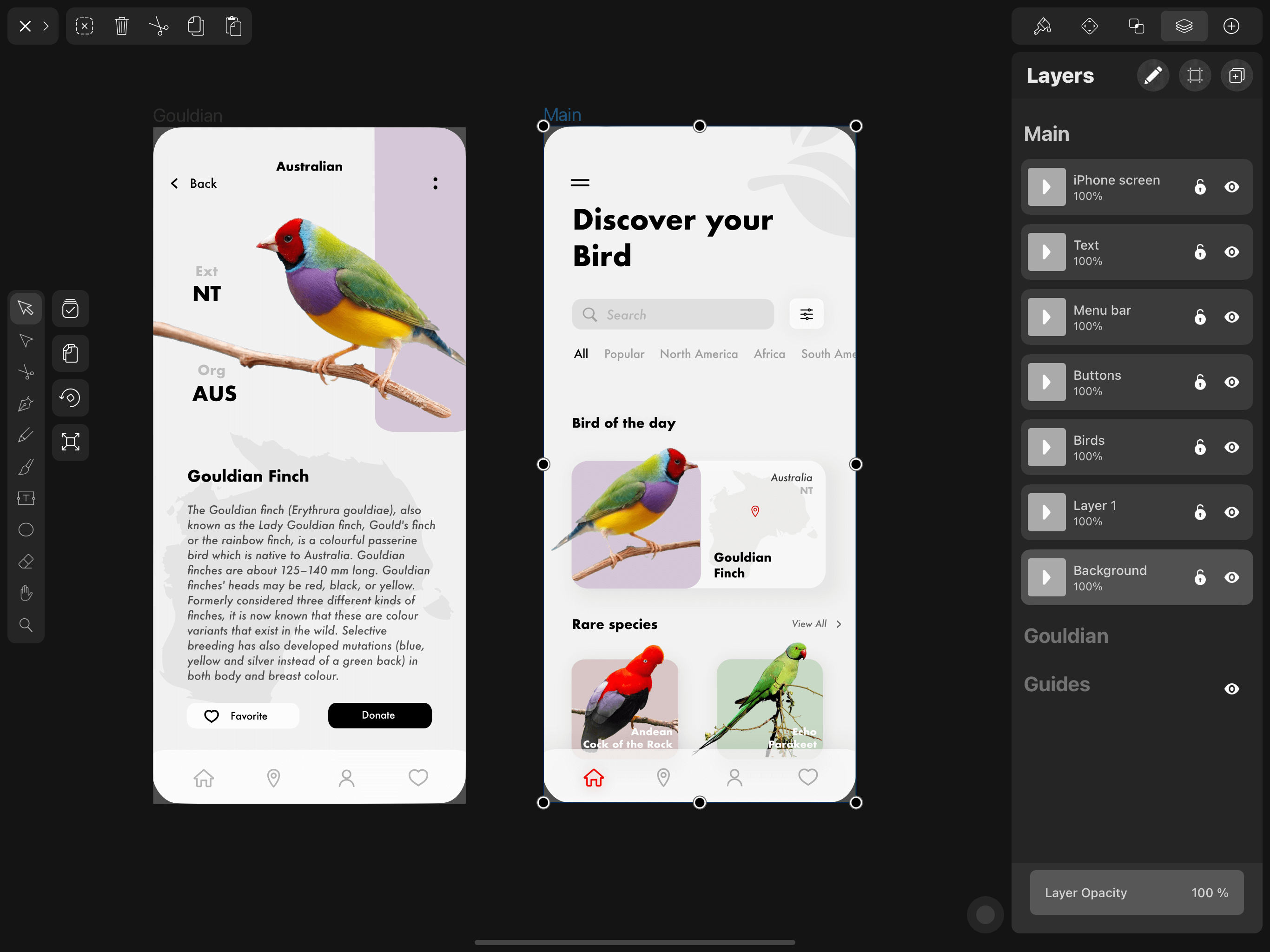

How to Switch Between Artboards
You can quickly jump between Artboards by tapping on their different titles, either on the canvas or in the Layers Tab.

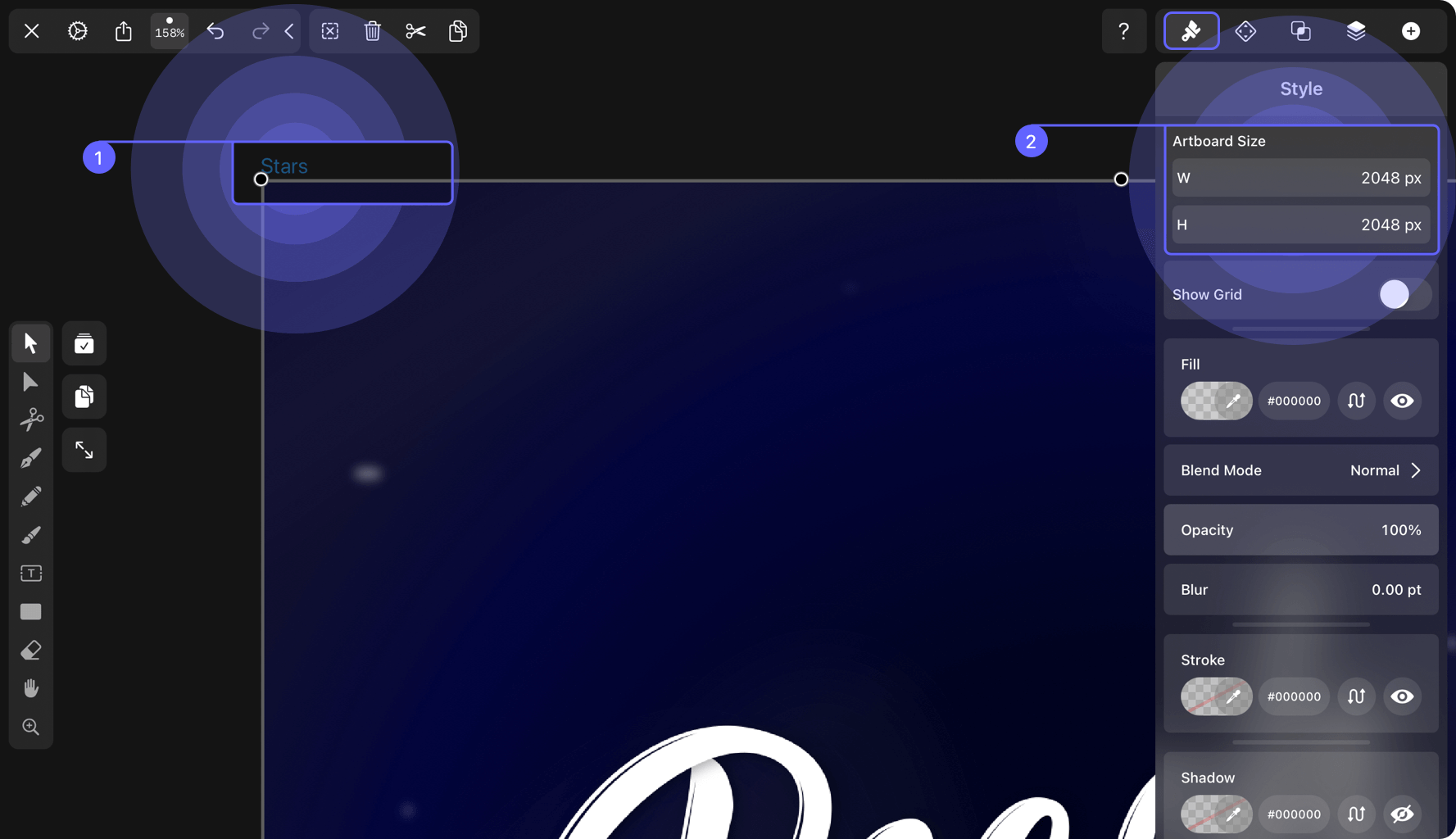

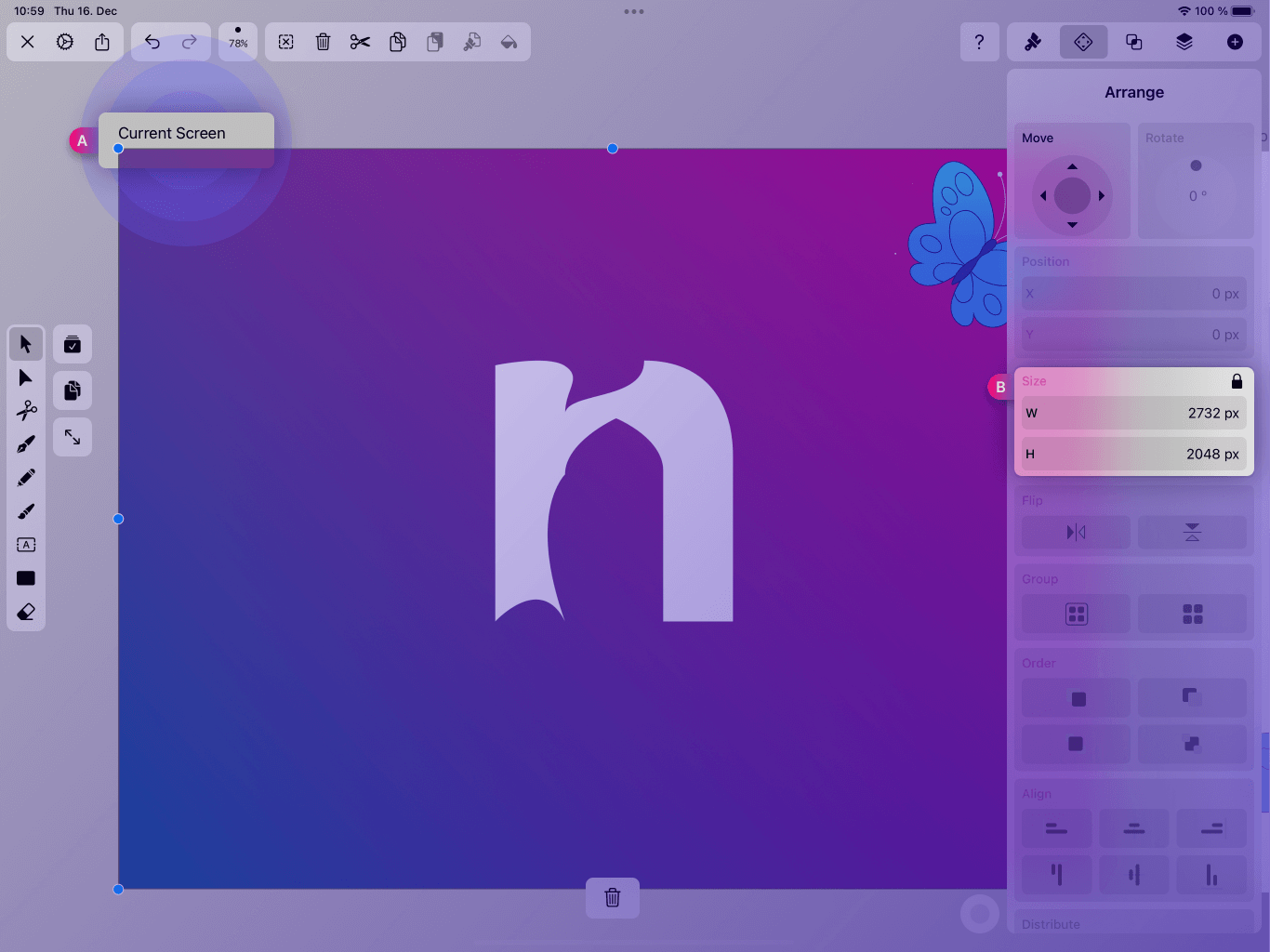

How to Resize an Artboard
Once you select the Artboard, you have three options available to resize it:
1 – Open the Arrange Tab in the Inspector and go over the Size section. By tapping the Width and Height fields, you will have the possibility to directly insert the width (W) and height (H) of your Artboard. Tap on it and the keypad will show up.

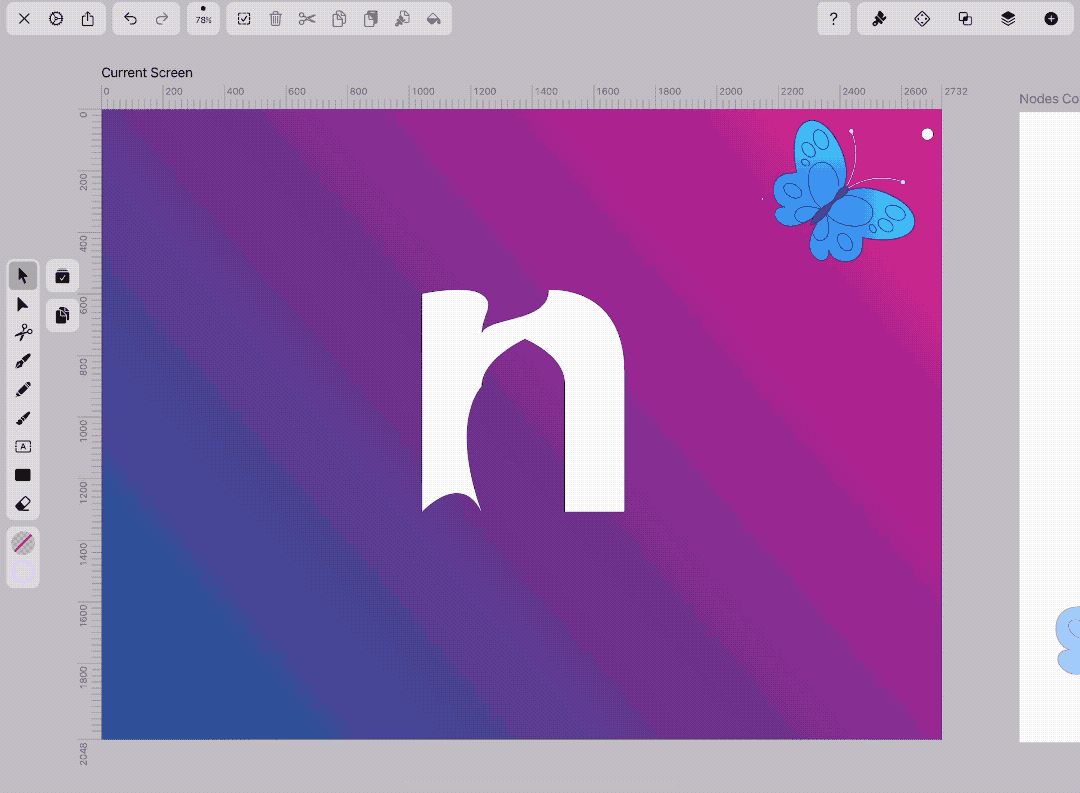

2 – Holding and dragging the border.
3 – Open the Quick Settings from the Widget Area, select Artboard & Grid and then edit the width and height values accordingly to your needs.
Pro Tip – You can also switch between a white or transparent background inside the Canvas Tab. In the pull-down menu View, you can turn the White Background option on and off

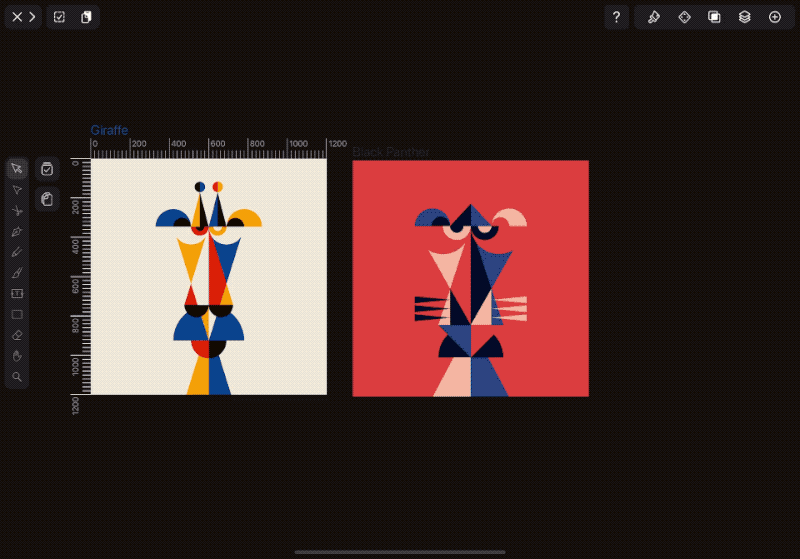

How to Duplicate an Artboard
You can now duplicate Artboards by using the Copy icon and Paste icon buttons inside the Action Bar.
How to set an Artboard Fill Color
You can set a custom background color for an Artboard ~ic-artboard~~ic-artboard~ by clicking on the Artboard Layer in the Layers Tab ~ic-layers-tab~~ic-layers-tab~.
This action then displays a content-aware Fill Section ~ic-fill~~ic-fill~ in the Style Tab ~ic-style-tab~~ic-style-tab~. You can set the background Fill ~ic-fill~~ic-fill~ color by clicking on the Color Well or setting a numeric value in the Hex Field.
Additionally, you can set the numeric alpha value of the Artboard ~ic-artboard~~ic-artboard~ background color in the Fill Section ~ic-fill~~ic-fill~.
The background Fill ~ic-fill~~ic-fill~ color can be toggled on ~ic-toggle-on~~ic-toggle-on~ or off ~ic-toggle-off~~ic-toggle-off~. If the background Fill ~ic-fill~~ic-fill~ color is toggled off ~ic-toggle-off~~ic-toggle-off~, Vectornator displays a white Artboard ~ic-artboard~~ic-artboard~ background color per default.

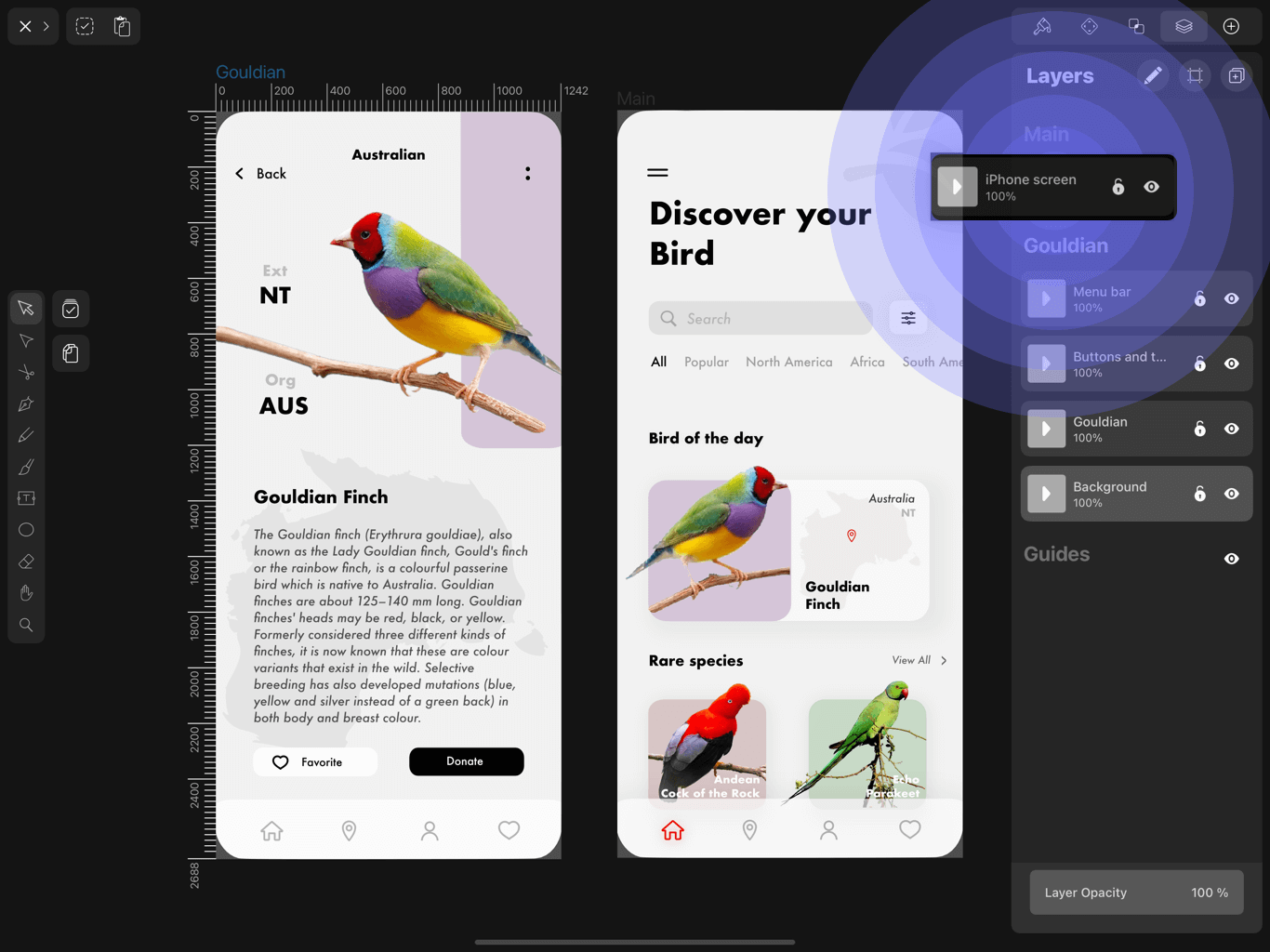

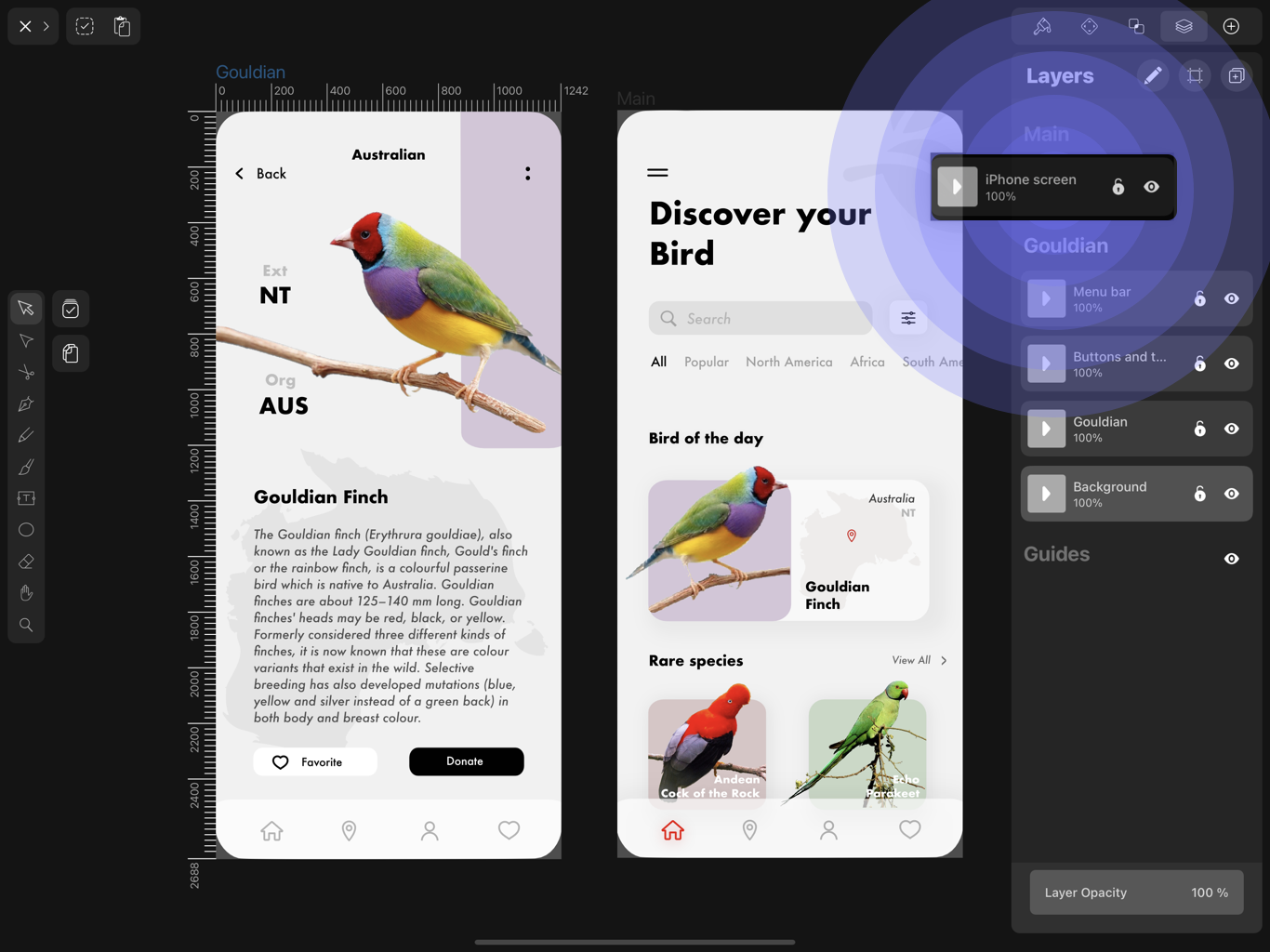

How to Move Elements Between Artboards
You can move elements between Artboards in two ways:
- From the canvas, select the element(s) you want to move from Artboard 1 and then drag and drop it (them) onto Artboard 2.
- In the Layers Tab, select the element and drag it from Artboard 1 to Artboard 2.
How to Print Artboards
Learn more how to print your Artboards directly from Vectornator.
