Supported Formats in Vectornator

Supported Formats in Vectornator

What can I import into Vectornator? And what are the formats that I can save my file to? We collected all these infos below.

If you’re wondering what file formats Vectornator can support, look no further.

Our ethos is to offer designers complete freedom in their creative process. That is why you can open almost any file format you can think of in our platform. Plus, you can export your project in a myriad of ways too! Vetornator is your one-stop shop to bring all your ideas to life.

Open sesame

Vectornator is a vector graphic design tool which can be used for many projects; either artistic in nature, for precise designs used in real-life applications like architecture sketches, or for professional work like logo designs.

Normally you would think that a program like Vectornator would only support the standard file formats like .PDF, .JPG, .PNG, and so on. But that couldn’t be further from the truth! Our list of supported file formats goes way beyond that!

Since we understand that you might use different tools for different applications, we allow our users to open specific file formats from most design softwares out there, including .sketch, .fig, .ai, and more! Whatever your workflow is, we want to make your life easier.

Let’s dive deeper into it, shall we?

Non-vector File formats

You can both import and export these formats into Vectonator:

.JPG – The file format for photography, web images and everything in between.

.PNG – Great for images with transparency. Remember that to export an image with transparency you have to remove the background layer. In Vectornator you can do that easily from the Export Preview Window by switching the Transparency toggle on and off.

Mac Export Preview Window. Art by Aleksey Rico.

To give you one extra design tip, raster images like .jpeg and .png can be turned into vector shapes using the Auto Trace feature.

How to import / open your .jpegs and .pngs

There are four ways that you can work with the above file formats in Vectornator:

  1. On Mac, right-click (or long press on iPad / iPhone) the file and select ‘Open with Vectornator.’
  2. If you’re already working inside a document, then you can simply place your files by dragging and dropping them straight into the canvas.
  3. You can access any image (.jpeg and .png) from the Library Tab inside the Inspector. Here you can have direct access to the Photos App or our Unsplash integration. Tap or drag and drop the image to your board.
  4. And last but not least, you can easily drag and drop an file into the Import Tab.

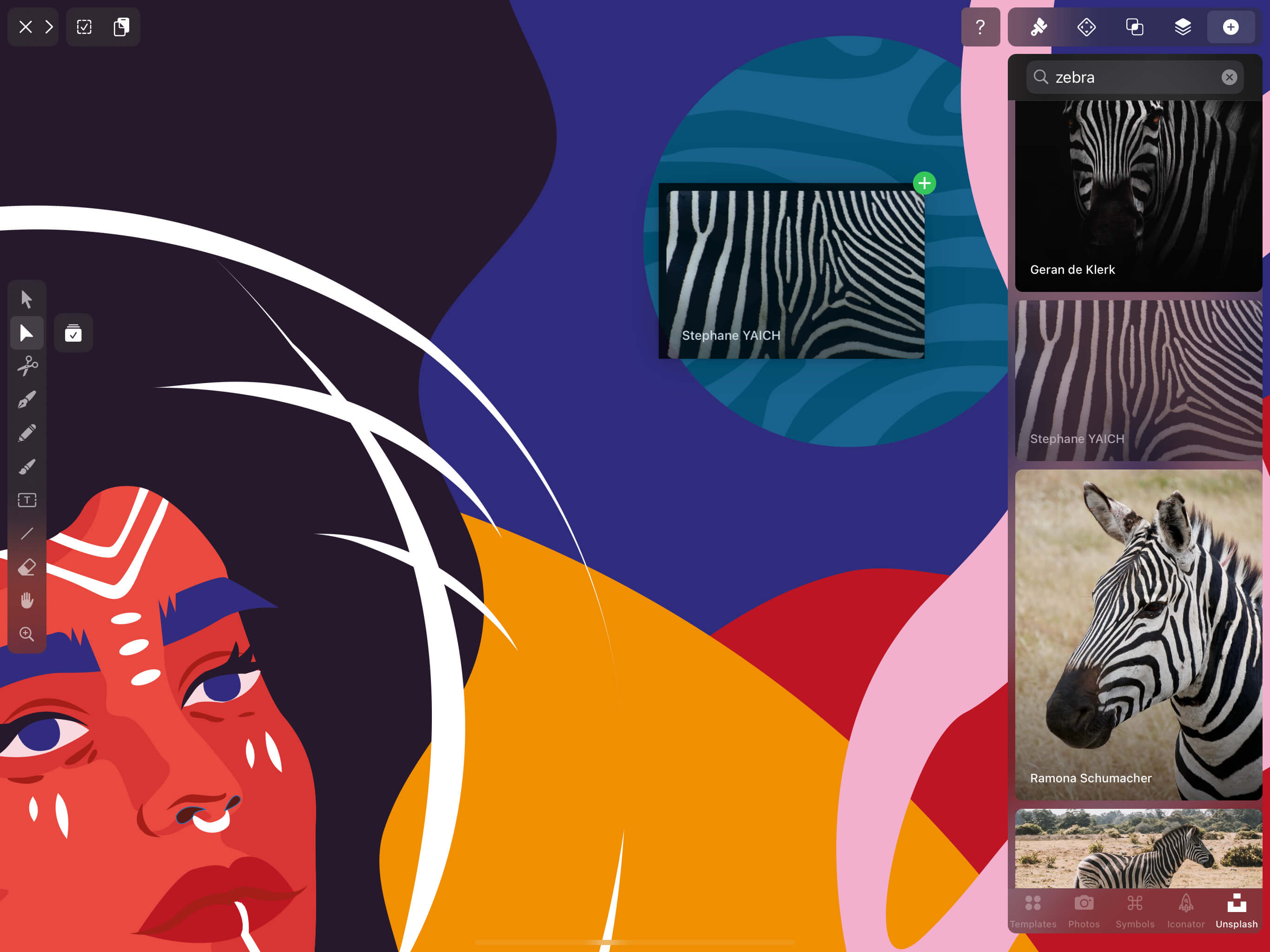

Unsplash image Import. Art by Sarah Alice Rabbit.

How to export / save your .jpegs and .pngs

To export your document there is only one step for you to do:

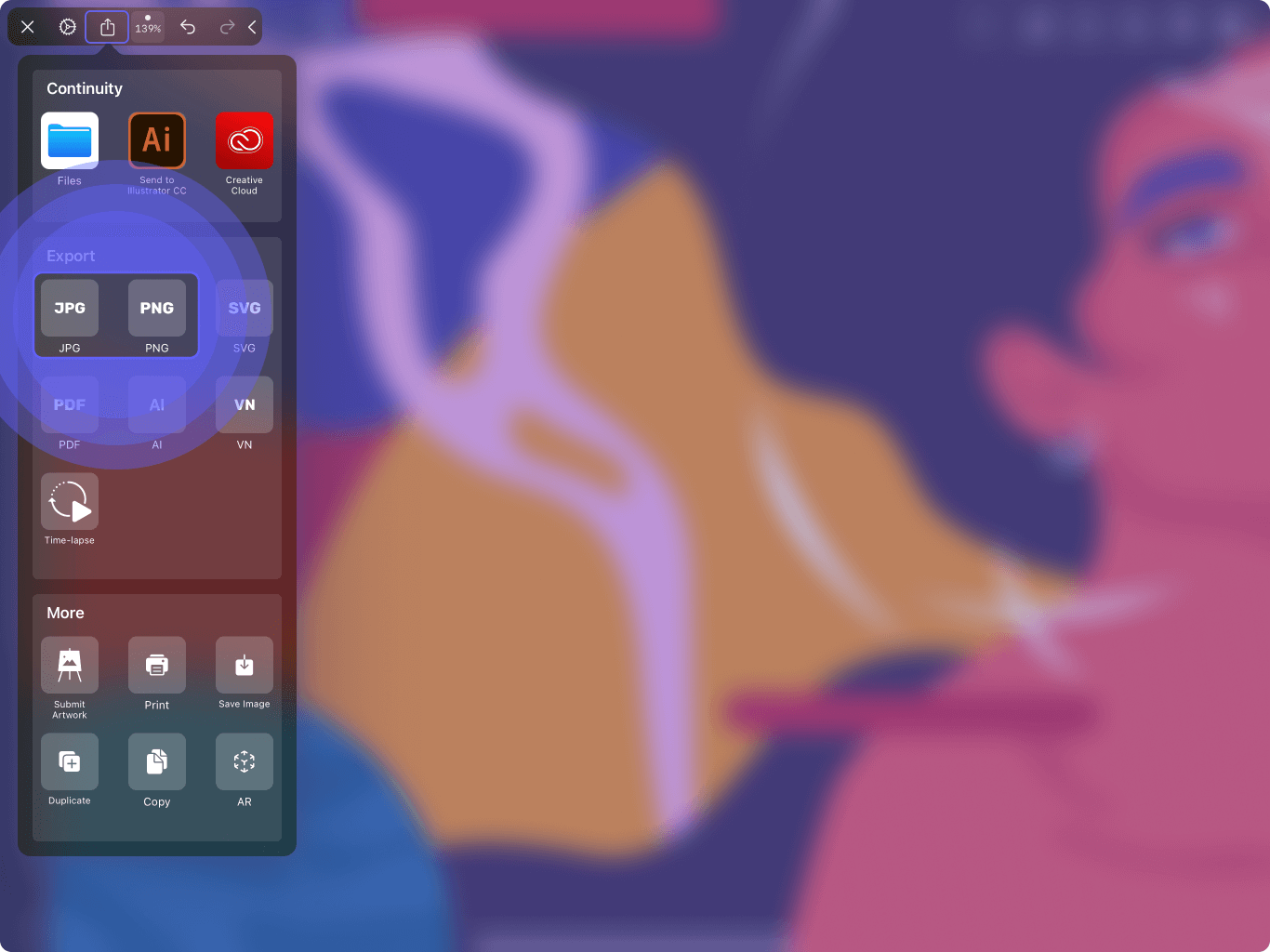

On iPhone or iPad, simply open the Export Popover and tap on the button <key>JPG<key> or <key>PNG<key> depending what is the format you want.

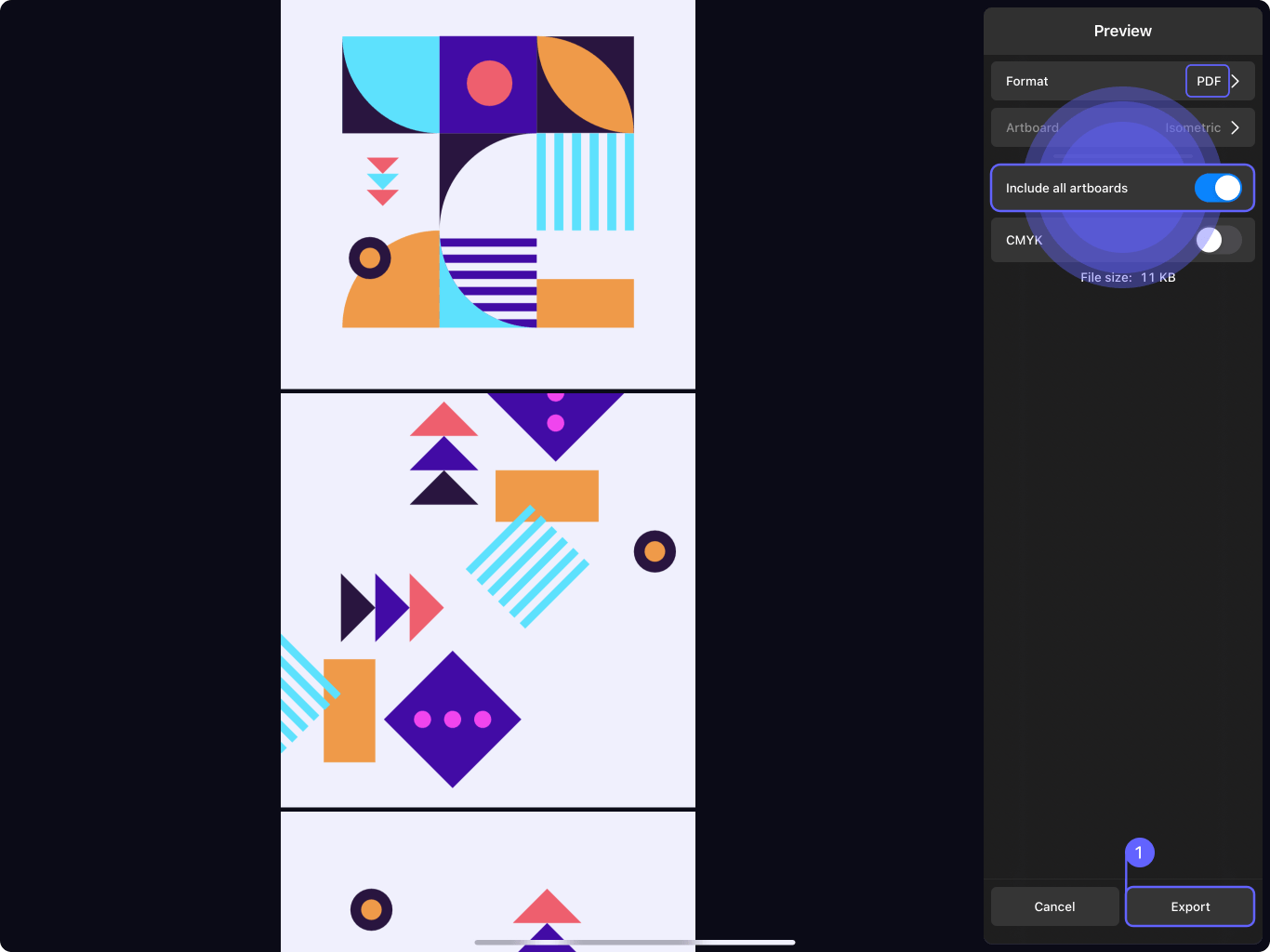

On Mac, you can navigate to File > Export or use the <key>⌘ E<key> key. Once you are in the Export Preview, you can still change the format in which you want to save your file.

Editable Vector file formats:

Unlike non-vector file formats, these files will allow you to continue editing the document until the job is done! You can open these formats in Vectornator. But you can also export them:

.vectornator - Vectornator's standard file format.

.SVG (.svg) - Short for scalable vector graphic file. Unlike other popular image file formats, the SVG format stores images as vectors. So it’s great for vector files, designs with separate layers, icons, and logos, and they’re especially useful for webpages.

.PDF - or Portable Document Format. This file format promises documents will be displayed the same way, on every device. An indispensable format for designers. Great for fillable forms, posters, or other print materials.

.AI - this is the native file format for Adobe Illustrator, and when opened, you can continue changing all the editable parts of the document. You can also use the Send to Adobe Illustrator function to directly send your document to your Adobe Illustrator software.

Other softwares

We also support some other software’s specific formats that can easily be open and edited:

  • Sketch (.sketch)  – Native to Sketch, the UI-focused software that disrupted the interface design industry.
  • Figma (.fig) – This is the UI-focused software that disrupted the market even more! Figma is the first cloud-based UX design tool to grace the industry, and it revolutionized the way multidisciplinary teams work together.
  • Wacom This is the file format generated by the Bamboo Slate. It allows you to turn your doodles into vectors in no time!

To open a file created with one of the mentioned software you can use the Import Tab.

Conclusion

All in all, Vectornator supports the most common formats designers work with. If you don’t see the file format you are looking for, please drop us a note in the feedback section. We’d love to improve your experience even more!

If you’d like to know more about all our integrations, check out the left menu for the full details.
